UYGALAXY 100W Greenhouse Film Roll Up Side Motor 1 3/8" Roll Bar Adapter + Precise Bearing Climber for Greenhouse Automatic Ventilation (with Creeper)

The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film.

Product Advantage

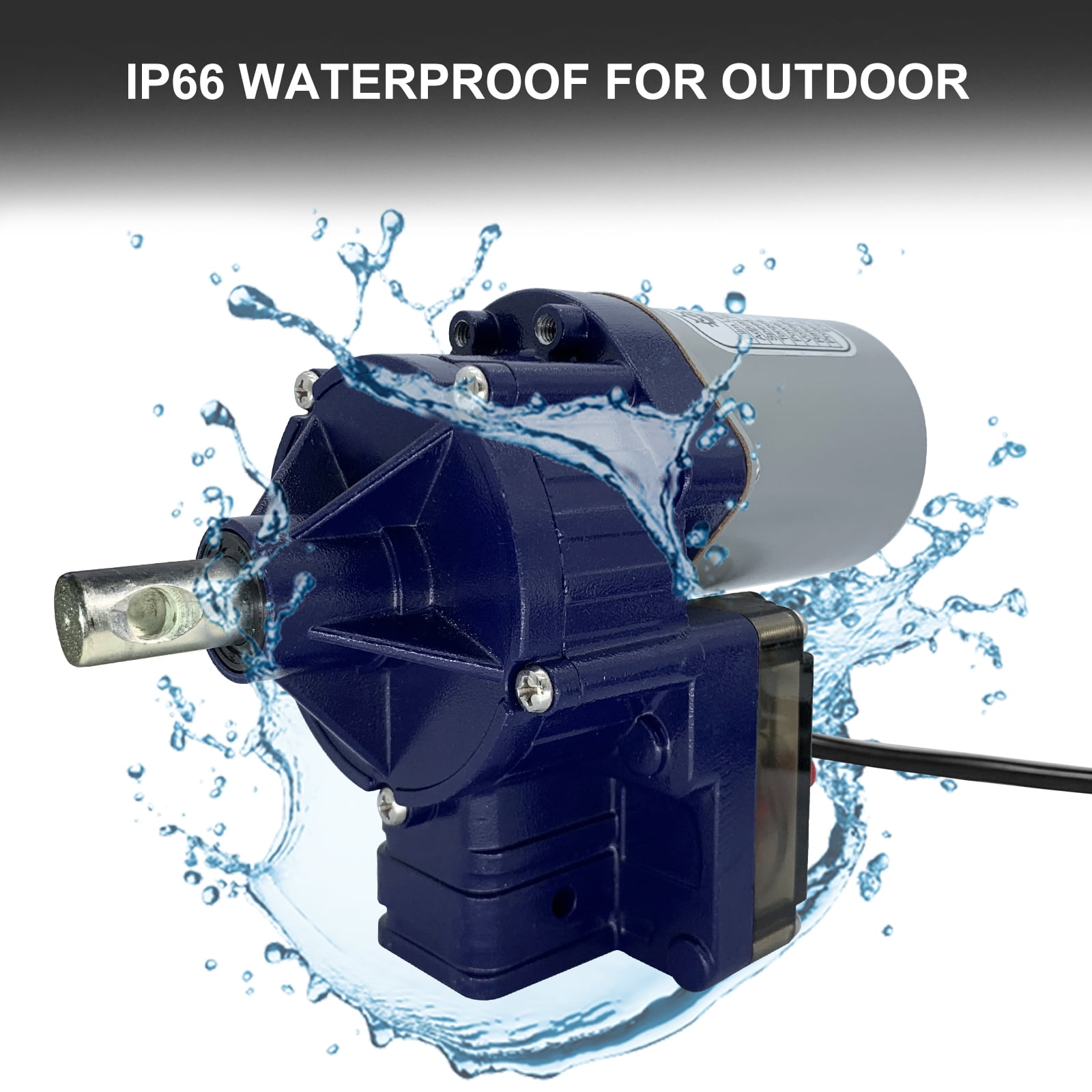

1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. Can side of the roll,also can top roll.

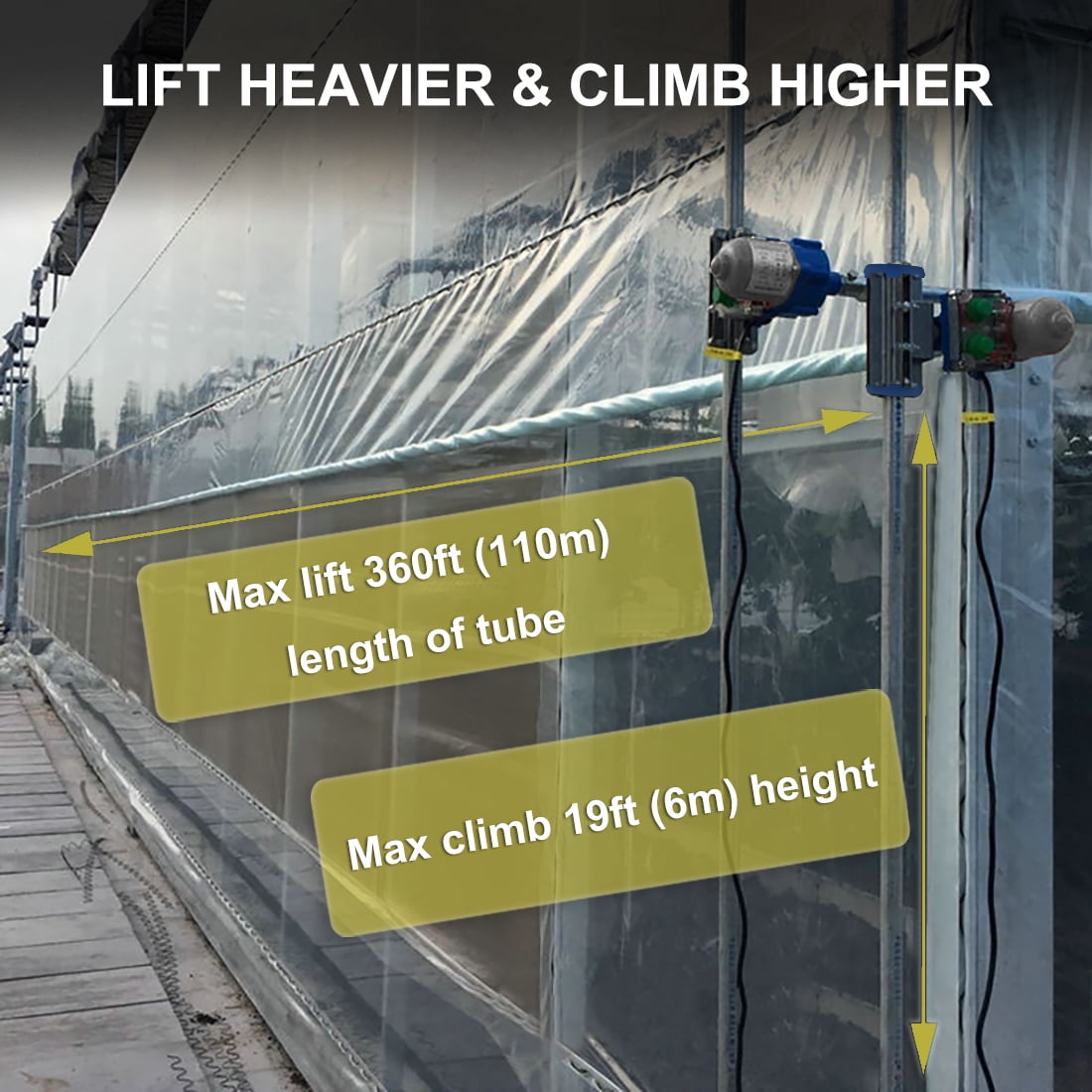

4. Roll up film tube length up to 360ft; Travel max 19ft height when OD 1-3/8 inch (Outside Diameter 35mm roll tube.

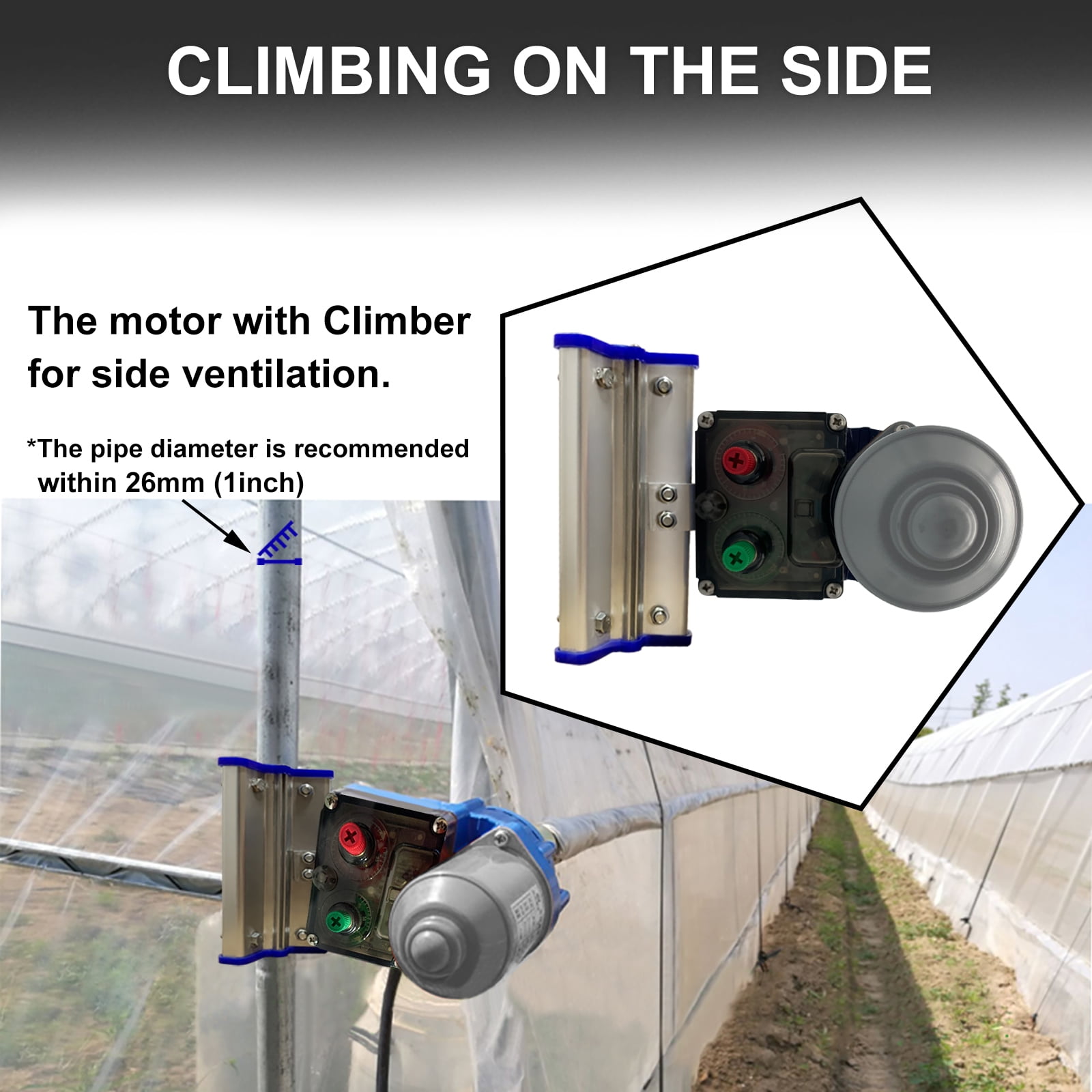

Roll up motor and climber work perfectly together(the bolt set is in the package of motor)

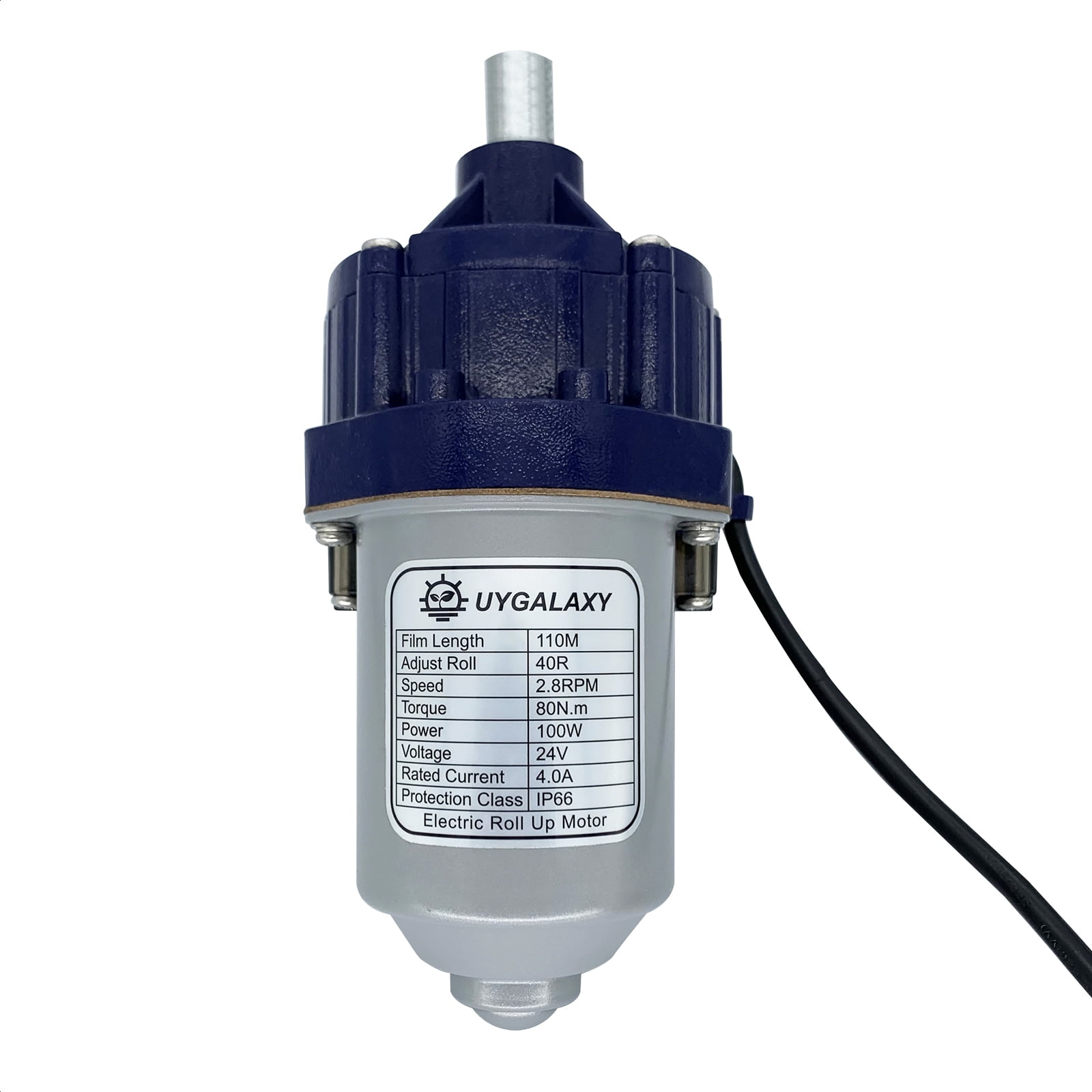

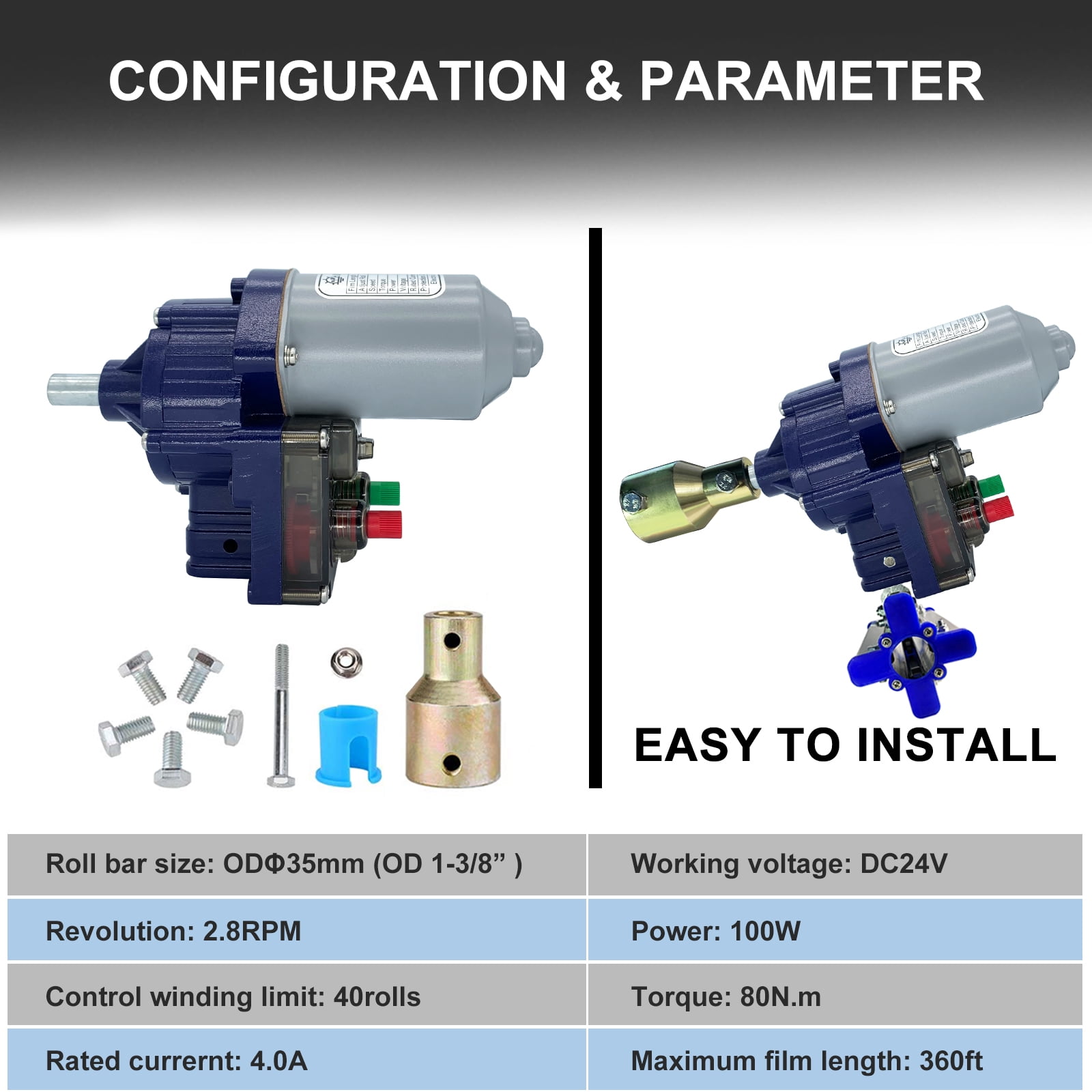

Specifications
Roll tube lenth: 5~360ft
Power: 100 watt
Adjust Roll: 40r
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m
Protection Class: IP66
Maximum film length: 360ft
Color:Blue and grey

How to install:

1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.

The galvanized tube couples in this product can be specifications: OD 1-3/8inch(Top Rail), NPS 1" , DN25mm

Material selection:

1. It's recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.
2. If connect 20 sets of motors to 1 transformer, it is recommended to use 3 AWG aluminum cord or 7 AWG copper cord as the main line to connect to transformer( the motors in parallel.)
3. If 20 electric roll up motors are connected at the same time, it is recommended to use 1600W ~ 2000W transformer.

Greenhouse type	Hoop
Frame material	metal, plastic
Height	5.9 in
Brand	UYGALAXY
Features	Waterproof
Rec location	Outdoor, Indoor
Weight	10.1 lb
Model	1
